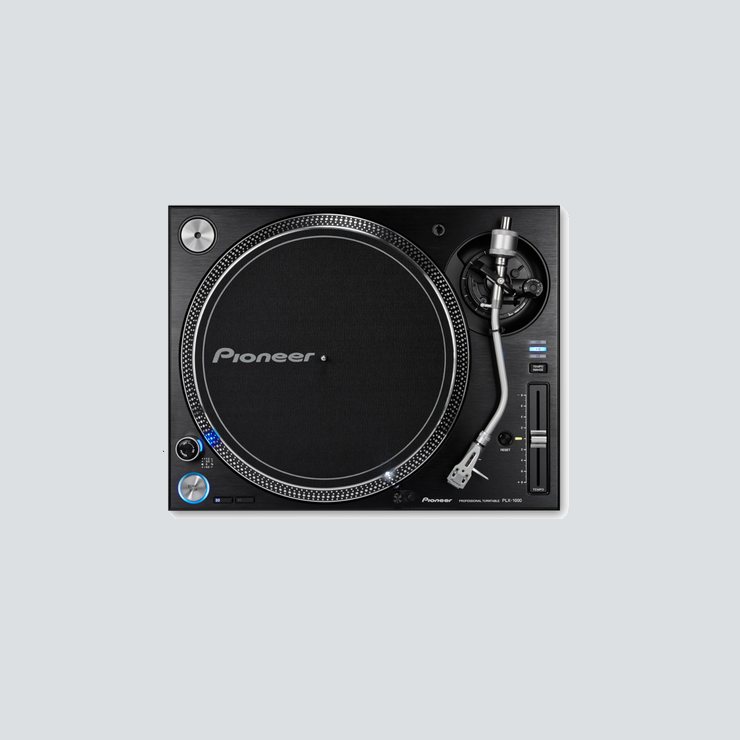

PLX-1000

High-torque direct drive professional turntable (black)

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.

IMAGES & VIDEOS

HIGHLIGHTS

  • TURN THE TABLES

    The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).



  • EXCELLENT SOUND DESIGN

    The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.



  • PICK UP THE PACE

    Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.



  • FLEXIBLE CONNECTIVITY

    Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

SPECIFICATIONS

Width

453 mm

Height

159 mm

Depth

353 mm

Weight

14.6 kg

Turntable

Drive Method

Quartz lock, servo-type, direct drive

Platter

Aluminium, die-casting diameter: 332 mm

Motor

3-phase, brushless DC motor

Braking System

Electronic brake

Rotation Speed

33⅓-45 rpm

Rotation Adjustment Range

±8, ±16, ±50 %

Wow and Flutter

< 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)

Signal-to-Noise Ratio

70 dB

Starting Torque

> 4.5 kgf・cm

Start Time

Within 0.3 sec (at 33⅓ rpm)

Tone Arm

Arm Type

  • Universal type S-shape tone arm
  • Gimbal-supported type bearing structure
  • Static balance type

Overhang

15 mm

Effective Length

230 mm

Tracking Error

Within 3°

Height Adjustment Range

6 mm

Stylus Pressure Variable Range

0-4 g (1 scale 0.1 g)

Proper Cartridge Weight

2.5-12 g (includes mounting materials)

Terminals

Outputs

1 ANALOGUE (RCA)

WHAT’S INCLUDED

  • PLX-1000
  • Power cord
  • Audio cable
  • Ground wire
  • Adapter for EP record
  • Turntable sheet
  • Slip mat and sheet
  • Dust cover
  • Head shell
  • Balance, sub and shell weights
  • Operating instructions
