CW7000

Single Wireless Microphone

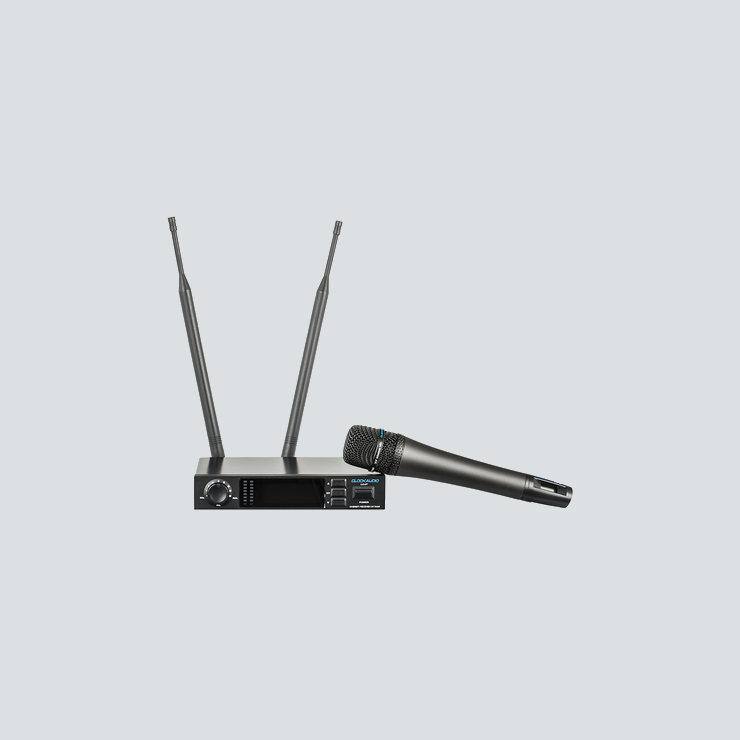

UHF PLL Personal Wideband True Diversity System. System comprises of 1 x CW 7000T hand held radio Microphone, 1 x CW 7000R Receiver.

IMAGES & VIDEOS

HIGHLIGHTS

  • PLL synthesized technology allows upto 1441 selectable frequencies.
  • 6 groups, maximum 23 channels in one group.
  • The true diversity reception with 2 independent RF receivers ensures stable reception.
  • Adjustable Pilot tone squelch control can effectively reduce the noise.
  • Fitted with S.A.W. filter to resist interference.
  • Fitted with squelch circuitry and Mute function.
  • Rugged metal housing.
  • Balanced output via 3 Pin XLR or 6.3mm (1/4″) Jack socket.
  • Anti-interference design for computer compatability.
  • Transmission power selectable between 10 and 50mW (depends on local regulation).

SPECIFICATIONS

CW 7000R
Frequncy Preparation PLL Synthesized Control
Frequency Range 502-960MHz
S/N Ratio > 105db
THD < 0.6%@1KHz
Function display method LCD and LED
Display contents Frequency, Antenna A/B, Mute display, LED meter, Battery Fuel Guage
Controls  Power ON/OFF, Frequency (up/down), Available frequency scan, Audio level, Lock on
Audio output level -12dB
Audio output impedance 600Ω
Squelch Pilot tone & Noise mute
Operation Voltage 12-18DC, 200mA
Output connector 1 balanced XLR socket, 1 ∅6.3mm un-balanced phone jack
Dimensions W 212mm (8.35″) H 38mm (1.50″) L 144mm (5.67″)
CW 7000T
Frequency UHF PLL Synthesized Control
Frequency Range 502 – 960MHz (Frequency Bands according to local regulations)
RF Output 10mW/50mW
Stability <±10KHz
Frequency Drift <±48KHz
Polar Pattern Cardioid
LCD Frequency (up/down), Battery fuel guage, Sensitivity
Controls Power On/Off, Mode Setting, AF Level, Frequency (up/down), Lock-On mode
Spurious emissions <-50dBC
Frequency response 50-16,500Hz
Battery Life 12 Hours at b10mW, 7 Hours at 50mW
Battery 2xUM3,AA 1.5V, Batteries not included

WHAT’S INCLUDED

  • Power Supply
