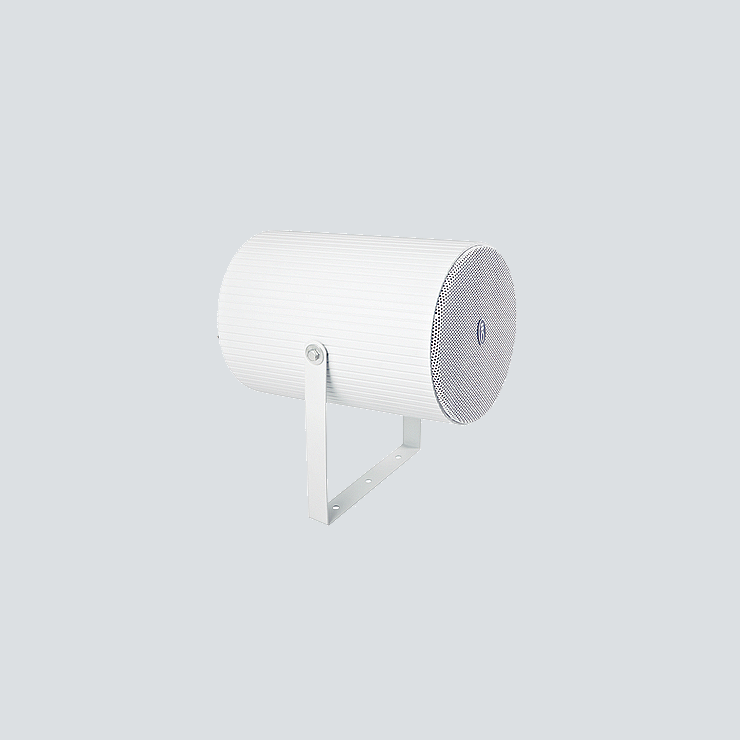

T-770

Uni-directional Projection Loudspeaker(7.5W-15W)



The T-770 is a waterproof projection speaker built-in 70v/100v transformer.  The built-in6”full range speaker driver is designed of wide frequency response 250-14kHz, the multiple power taps 7.5W & 15W are helpful for different applications varies from room size and ambient noise surroundings. It is ideal choice for industrial and commercial applications in the outdoor area of train station, shopping mall, parking area and factory where background music and paging is needed.

IMAGES & VIDEOS

HIGHLIGHTS

  • Built-in 100v/70v transformer

  • Waterproof projector type loudspeaker

  • 6” full range speaker unit

  • IP66 waterproof level

  • Power taps 7.5w-15w @100V

  • Aluminum enclosure and metal bracket

SPECIFICATIONS

Model

T-770

Power Taps @100V

7.5W, 15W

Power Taps @70V

3.75W, 7.5W

Impedance

Black: Com    White: 1.3KΩ  Green: 670Ω

SPL(1W/1M)

100dB

Max. SPL (Rated W/1M)

112dB

Frequency Response (-10dB)

250-14KHz

Finish

Baffle: Aluminum, White  Grille: Steel, White

Speaker Driver

6″ x 1

IP Rate

IPx 6

Dimensions

172 x315mm

Weight

2.7Kg

Mounting

With mounting bracket fixed by screw

WHAT’S INCLUDED

  • Wall Mount Bracket

DOWNLOADS

Not available

Not available

Not available

Not available
